F306 3D PRINTER
(Discontinued – Offered between 2013-2016)
The F306 was Fusion3’s first commercial offering. An open-framed 3D printer, manufactured using T-Slots and the first implementation of our ‘F-Series’ motion control system. The F306 provided impressive print speed and print quality compared to the 3D printers available at that time, and while not enclosed, still could produce acceptable prints with ABS and Nylon in smaller sizes.
One customer remarked about the F306, in an Amazon product review: “If you’re thinking about going big, and need something that’ll take the abuse of actually doing prototype work, this is a printer you’ll want to consider. You’ll be hard-pressed to find better at the price point they’re offering it at.”
FUSION3:
F306 3D PRINTER
Commercial Grade 3D Printer
Best-In-Class
Speed, Quality, and Durability
For Business & Education
Massive Build Volume

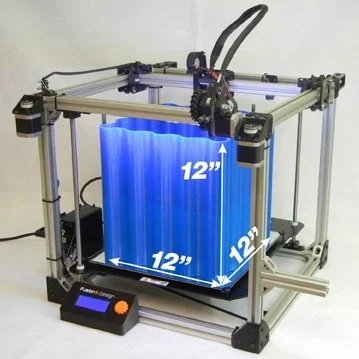

- 1.01 cu ft (12”x12”x12”) (306x306x306mm)
- Compact design fits on your desk
Untouchable Print Speed
- Print at speeds 2-4 times faster than the competition without a loss of print quality
- Massive prints finish in hours, not days
Unparalleled Reliability
- Engineered for maximum reliability &
consistent performance - Proprietary extruder system
- 10,000+ hours of reliability testing
Unmatched Output Quality
- Rock-solid printing platform
- Zero backlash drive system
- Precision calibration
- Heated Print Bed Prevents Warp
Prints Most Thermoplastics
- All-metal print head can reach 300*C
- Powerful multi-zone heated bed keeps
high-temperature materials stable - PLA, ABS, Nylon, PC, PC-ABS, PET, HIPS,
and many more
Pre-Configured Software
- Powerful Simplify3D processing software
with printer purchase - Includes presets for common materials
- Full control of printing parameters via control panel
Pricing
- Single Extruder $3,975
- Dual Extruder $4,975
- Optional 1 Year Support & Advanced Exchange Service Plan $984
Full Specifications
| Print Technology | Fused Filament Fabrication (FFF) |
| Print Volume | 306x306x306mm |
| Max Print Speed | 250 mm/sec |
| Max Travel Speed | 550 mm/sec |
| Positioning Resolution | 21 microns (horiz) |
| Minimum Feature Size | .45 mm2 |
| Vertical Resolution | 100-300 microns |
| Print Head Size | 0.4 mm |
| Feature Tolerances | +/- 0.003″ per inch |
| Print Head | E3D all-metal, actively cooled |
| Filament Size | 1.75 mm |
| Exterior Size | 606 x 645 x 560 mm |
| Weight | 30 lbs |
| Max Print Head Temp | 300*C (572*F) |
| Max Bed Temp | 140*C (284*F) |
| Electrical Input | 100-120 VAC, 200-240VA, 500W |
| Connectivity | SD Card, USB Cable (included) |
| Processing Software | Simplify3D Creator (included) |
| Software Compatibility | Windows, Mac, Linux |
| Base Warranty | 6 months |
