Fusion3 EDGE 3D Printer

MEET EDGE: THE SERIOUS 3D PRINTER FOR YOUR SERIOUS APPLICATION

Large build volume
High temperature materials
Fiber-filled material ready
150+ material options
Made in the USA

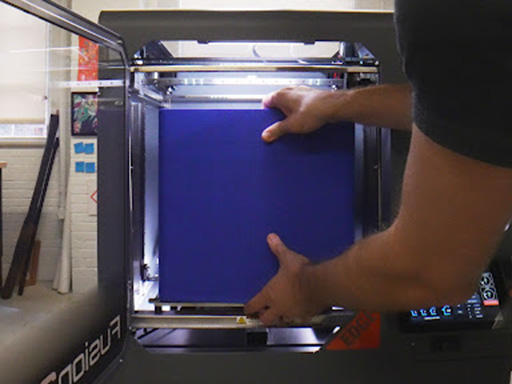

SIZE MATTERS

In the real world, some problems are bigger than a typical 3D printer’s bed.

EDGE enables you to tackle large projects with ease, by printing large parts in one (or fewer) pieces or printing multiple smaller parts at once.

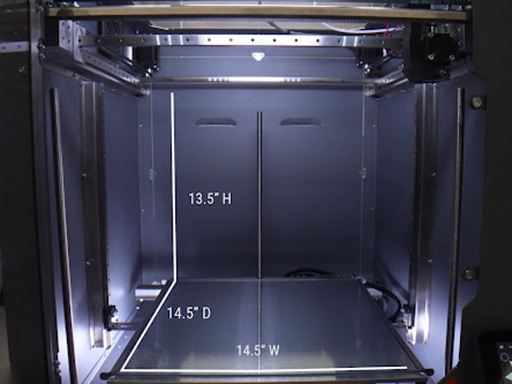

14.5″x14.5″x13.5″ (367x367x342mm) build volume
Largest horizontal build area in its class
Still fits through a standard (36″) doorway

FIBER-FILLED COMPATIBILITY COMES STANDARD

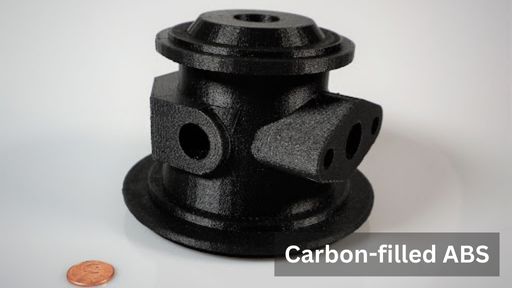

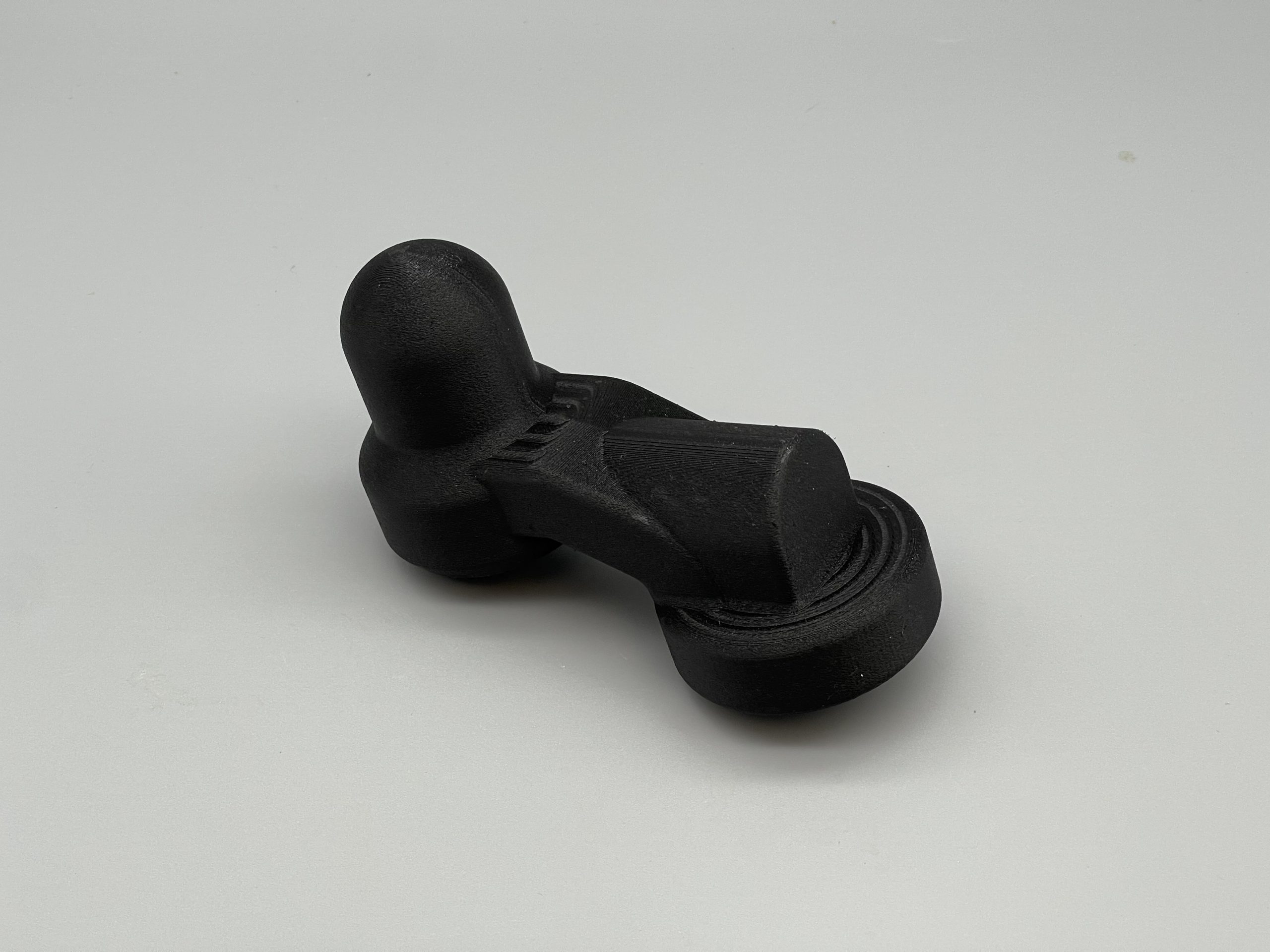

Out of the box, EDGE is capable of printing carbon fiber, glass fiber, & kevlar-filled variants of all materials.

0.6, 0.8mm nozzle size options for more reliable printing with high fiber content

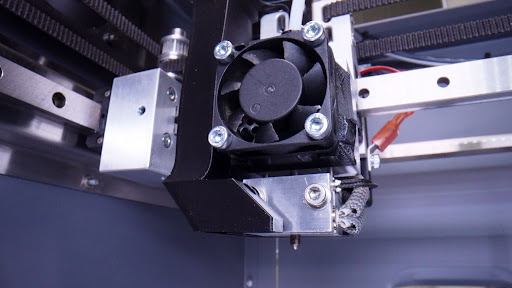

ANVIL print head tubes are low cost, easy to replace if damaged
ANVIL tubes are abrasive resistant
Build volume components are precision milled metal that can withstand high temperatures

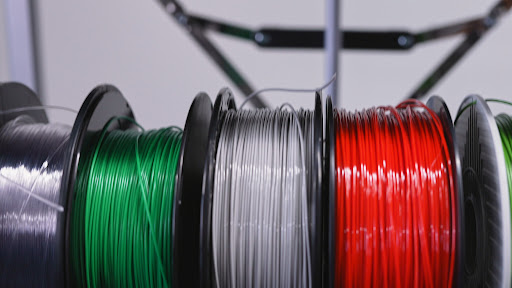

UNPARALLELED MATERIAL OPTIONS FOR EVERY APPLICATION

High-performance thermoplastics are one of the keys to enabling 3D printers to solve more problems in your business. These engineering-grade materials can be challenging for consumer 3D printers to print because they require higher temperatures and better control over the build environment.

Print high temperature materials including PC, PC-PBT, ABS, & Nylons with ease

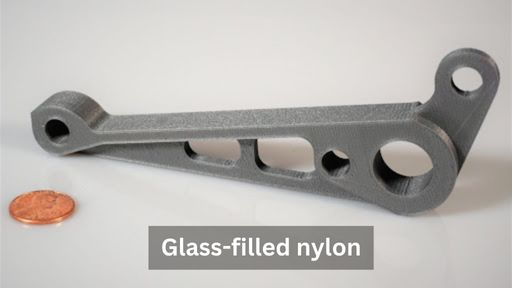

Print fiber-filled (CF, GF) materials out-of-the-box

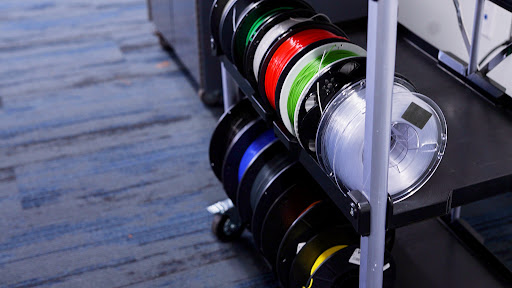

150+ material options so you have the perfect fit for every application
Open materials philosophy = no vendor lock-in

EDGE delivers unparalleled performance with materials such as ABS, PC, ASA, and Nylons thanks to it’s ability to reach the correct temperatures for these materials:

315C print head
145C bed
Fully enclosed build chamber with controlled airflow through filter
Passively heated chamber that maintains a max temp of 70C

Our favorite high-temperature materials include:

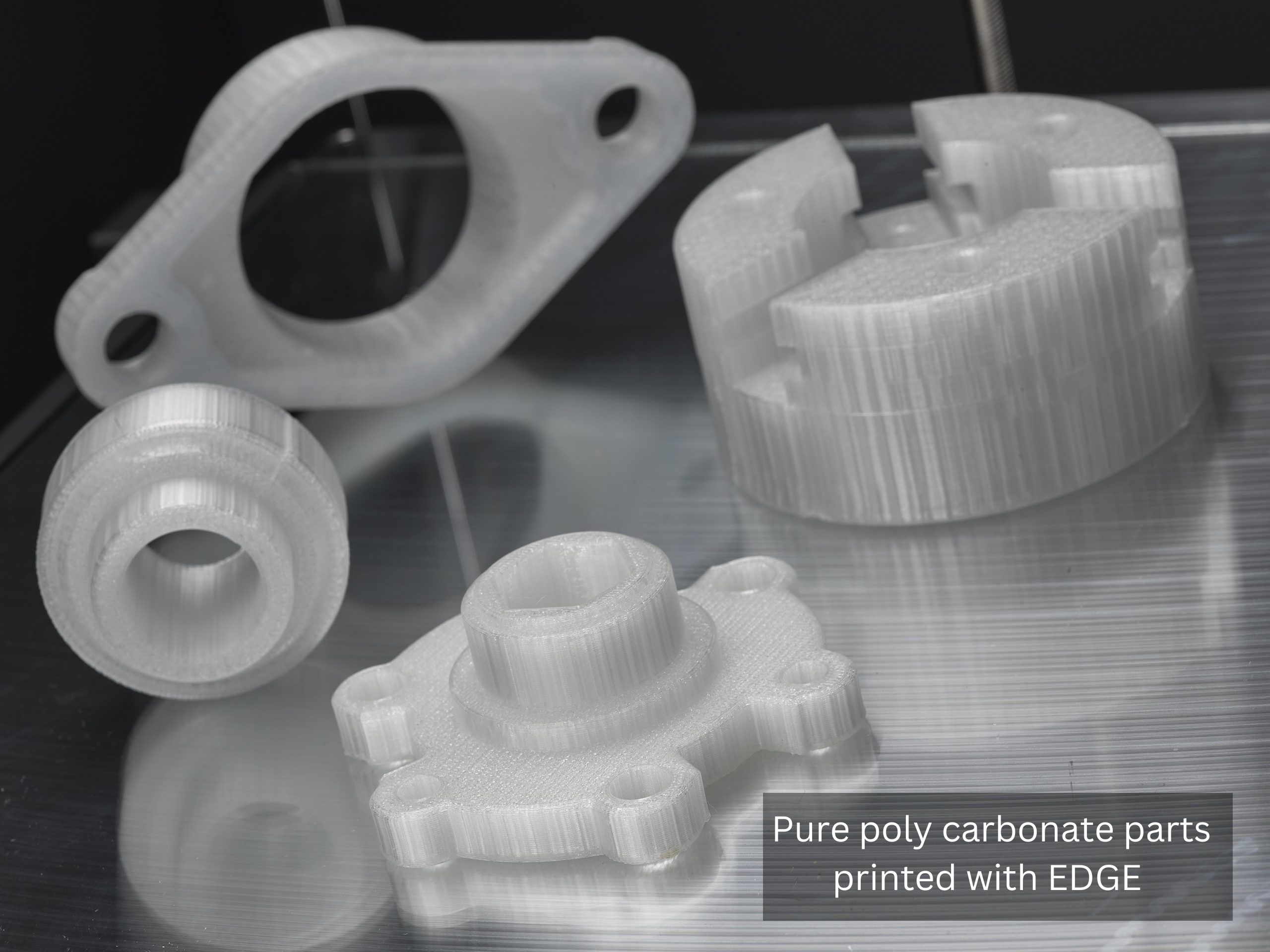

Pure polycarbonate (Tg 140C) (“easy print” variants mixed with other plastics need not apply)
PC-PBT (Tg 120C)
ABS (Tg 105C)
ASA (Tg 100C)

Learn More About Materials

FLEXIBLE & CONFIGURABLE

EDGE is a powerful general-purpose tool with a plethora of configurations and options.

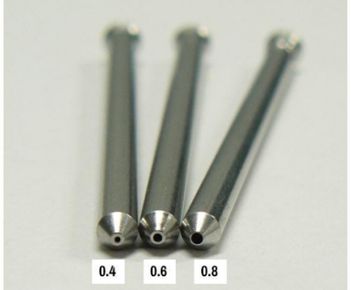

Multiple Nozzle Sizes

Select between our 0.4mm, 0.6mm, and 0.8mm print head nozzles for the right balance of detail vs speed for your application. Nozzles can be changed in as little as 3 minutes, and the same print head can use all 3 nozzle sizes.

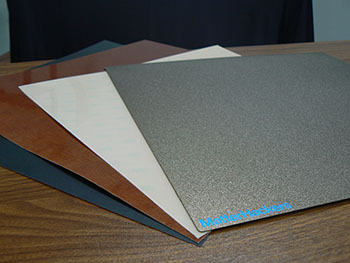

Versatile Print Surfaces

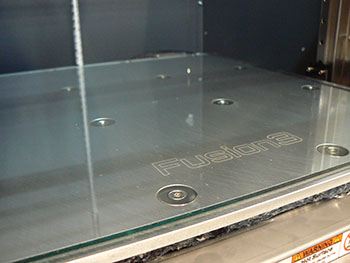

EDGE can be equipped with a magnetic tool plate, to enable use of print surfaces other than glass. This flexibility can be used to print specialized materials or enable higher throughput in production environments.

Secure Variant

We recognize the importance of security in our modern world. If you need 3D printing capability in classified or secure environments, EDGE’s Secure variant delivers. This variant has no radios of any kind (bluetooth, wifi, etc) on board to minimize the attack surface available to hostile actors.

Stack Light for Status-at-a-Glance

Our optional stack light allows you to see the status of your EDGE printer from across the room. Is it running, does it need attention, or is it ready for another print job? For folks who run fleets of printers, this time saving device can be invaluable. The stack light has a magnetic base and extra-long cord for flexibility.

Filament Dryer

For long prints in moisture-sensitive materials, or for locations with poor humidity control, the filament bay dryer can slow down the rate of moisture absorption while rolls of filament are in the filament bay. This can reduce (but not eliminate!) the need to frequently dry the filament and improve your print quality/consistency.

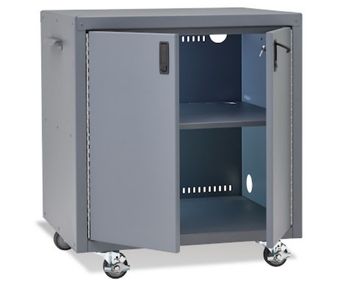

Printer Cart

The companion rolling cart for EDGE offers a convenient home for the printer, containing interior storage and convenient pass-thru holes for the power cord. This becomes a valuable addition if you have limited desk space or anticipate frequently moving the EDGE printer.

Standalone Filament Dryer Oven

All thermoplastics will absorb moisture from the air, and this moisture will negatively impact your print quality. The most reliable way to remove this moisture and control your print quality is to dry the material before use. A standalone filament drying oven is an effective solution to wet filament issues.

SECURITY IN AN INSECURE WORLD

The world isn’t getting any easier to navigate in terms of infosec, intellectual property management, and digital threats from state and nonstate actors. EDGE is designed with your business, government, or military security needs in mind:

Made in USA
Section 889 compliant
TAA compliant

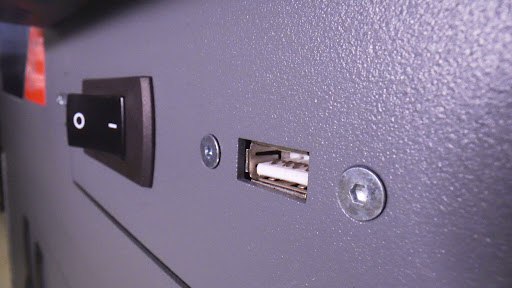

“Secure” variant with no radios & USB lock
Software does not “phone home” or required internet connection
Local network connection is optional

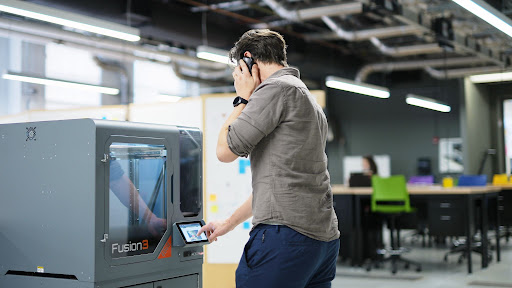

COMFORTABLE IN ANY ENVIRONMENT

EDGE is equally at home on the machine shop floor or in your office.

Fully enclosed to control heat, fumes, smell, protection from hot surfaces & moving components, & protect the build environment from dust
Door interlock automatically pauses print if door is opened
Optional HEPA + carbon filter for print chamber exhaust
37.5 dB during operation
